Combining attractive aesthetics with the best performance is one of the main goals in architecture.
The RS-65 window system guarantees the best performance on the market in terms of air permeability, water tightness and wind resistance, while bringing elegance and simplicity to the whole building thanks to its contemporary design.
| Air permeability* | UNE-EN 1026:2017; UNE-EN 12207:2017 | Class 4 |
| Water tightness* | UNE-EN 1027:2017; UNE-EN 12208:2000 | Class E750 |
| Wind load resistance* | UNE-EN 12211:2017; UNE-EN 12210:2017 | Class CE3000 |
| Thermal insulation Uw** | UNE-EN ISO 10077-1:2017 | Up to 1.2 W/m2K |
| Sound insulation Rw | UNE-EN ISO 10140-2:2011 | 41 dB (-1; -3) |
* Specifications of 2-sashes window of 1230×1480 mm
** Specifications of a 1-sash balcony window of 1100×2200 mm
Maximum recommended dimensions (1 sash): 1400x2400 mm
Maximum recommended weight: 150 kg/sash
Maximum glazing: 50 mm
Polyamide: 23.5 mm
Hidden hinges and micro-ventilation option
EPDM gaskets
DAP/EPD cradle to grave range
Several conventional clip-on and outer frame options
The restrained and elegant layout of the RS-65 HH series gives full prominence to the facade. Its unobtrusive appearance gives the system great versatility, making it a perfect fit with the style canons set by today’s architecture.
The RS-65 HH window and door system assembles its sections by mechanical joints. Its outer frame depth is 65 mm and has thermal break with 24 mm polyamides, which allows maximum energy efficiency. The 16 mm groove adds robustness and security to the system.
The RS-65 HH window system achieves a classification of class 4, class E750 and class CE3000 in weather tests. Its thermal break gives it features far superior to those of conventional windows.

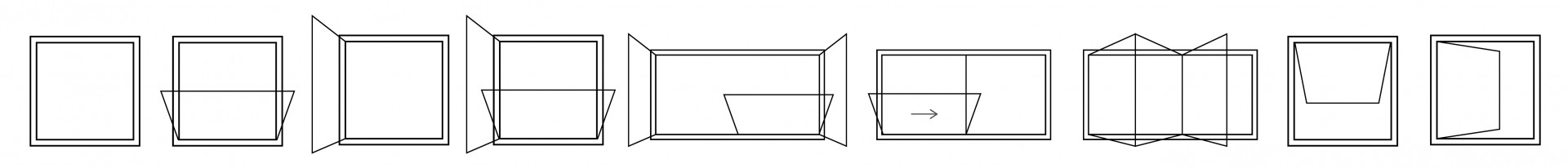

The RS-65 HH window has several outer frame options: conventional, clip-on and with overlaps. In addition, it offers a multitude of options in terms of opening and the possibility of choosing concealed hinges and micro-ventilation.
